NORTH AMERICAN Torus Power PRODUCTS

AVR2 SERIES

Technology

Toroidal Isolation
Noise Filtering
High Instantaneous Current Capability
Series Mode Surge Suppression
Automatic Voltage Regulation
Smart Ethernet
Custom Control

Description

The AVR2 series includes the most feature-rich models in the Torus Power line-up, with enhanced Ethernet control and monitoring features. Performance and protection remains consistent with other models in the Torus line.

Balanced Input is available on many Torus Power models, providing an additional stage of noise cancellation.

AVR2 has all features of AVR

AVR SERIES FEATURES

IP addressable with built-in web browser interface – allows remote monitoring and control
Password protection control
Automatic email notification on fault condition
RS-232 control — compatible with Crestron and other control systems
Switch-On Safety Delay (5 seconds) when power turned on / restored
Cloud based monitoring and control through ihiji, and other systems
Front panel display shows voltage conditions (input / output voltage), current draw, and IP address

Custom Control (AVR2 Models)

All features of the AVR Series
Individually addressable outlet zones – 4 zones for 15A and 20A models; 7 zones for 45A, 60A, 75A to 90A models
Power-up sequencing with selectable delay time between zones
Scheduling features allows automatic control (on/off) of any outlet zone
Schedule up to 6 events per day per zone
Automatic reboot feature allows remote restart of routers and modems if internet connection lost
Schedule remains active when internet connection is lost, if system power maintained

Torus Medical Grade Outlets on North American Models

Torus Power RM, AVR, and AVR2 series models use extra heavy duty medical grade outlets custom manufactured by Hubbell. These outlets provide greater contact force, reduced heat buildup, and redundant grounding, and are vastly superior to commercial grade outlets. Torus Power 15 Amp & 20 Amp Outlets are available for purchase.

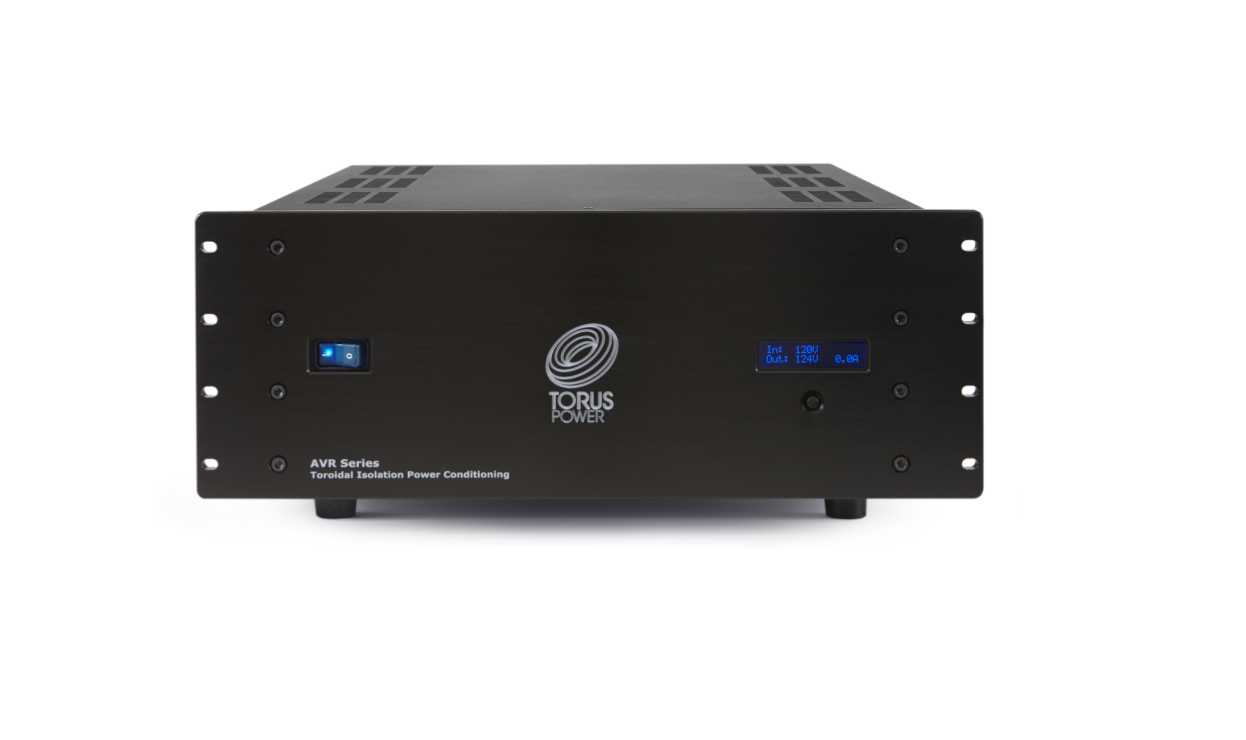

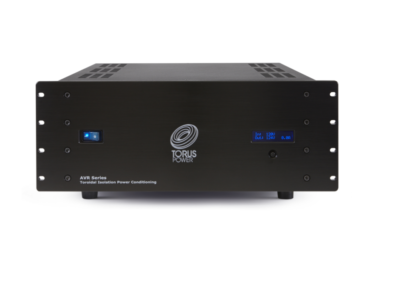

AVR2 15

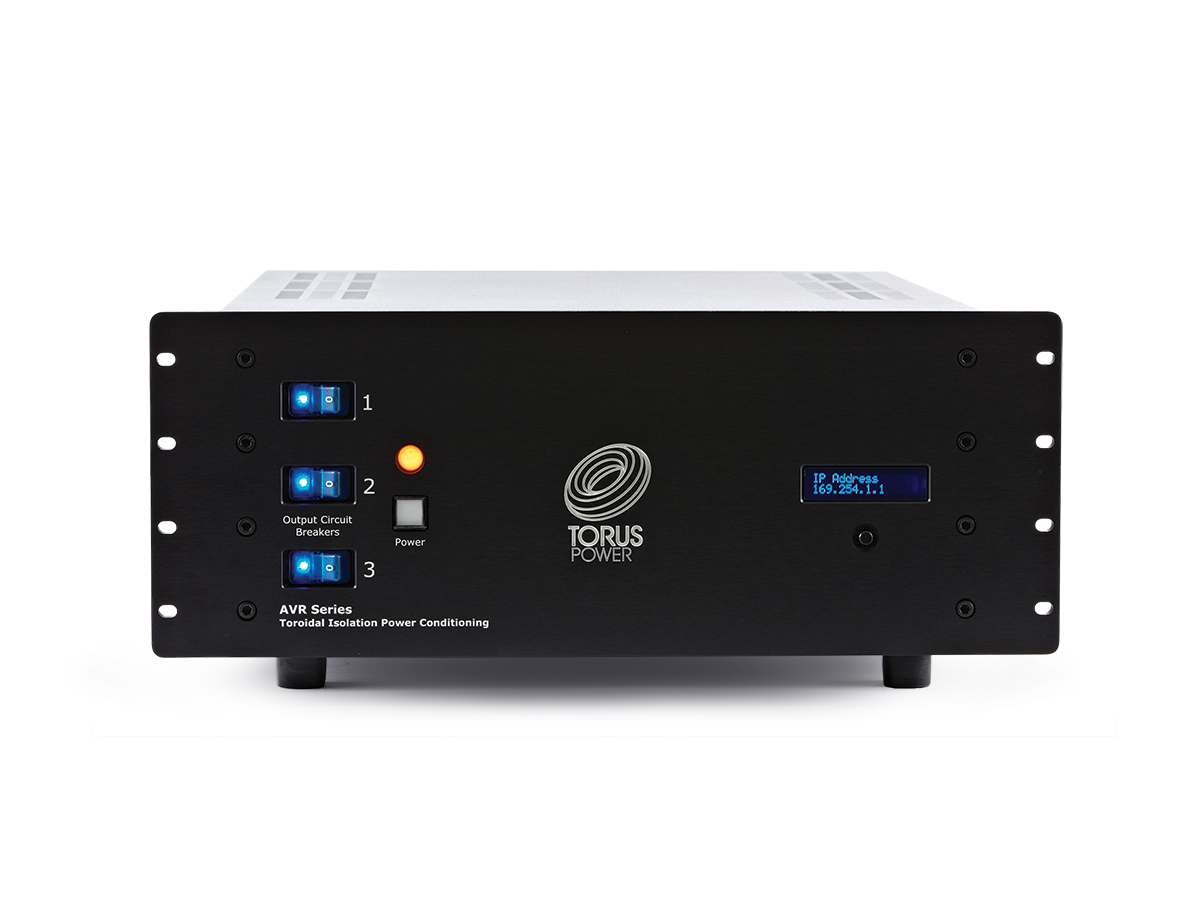

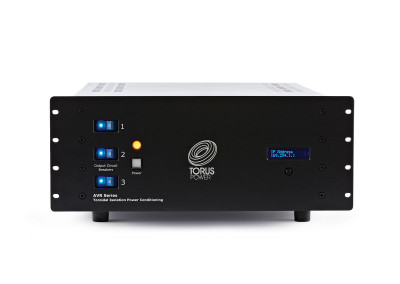

AVR2 60

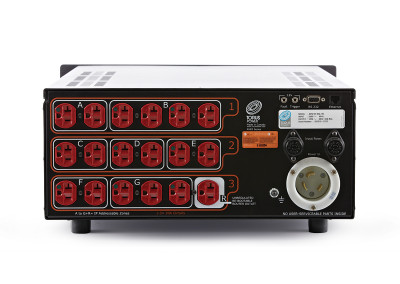

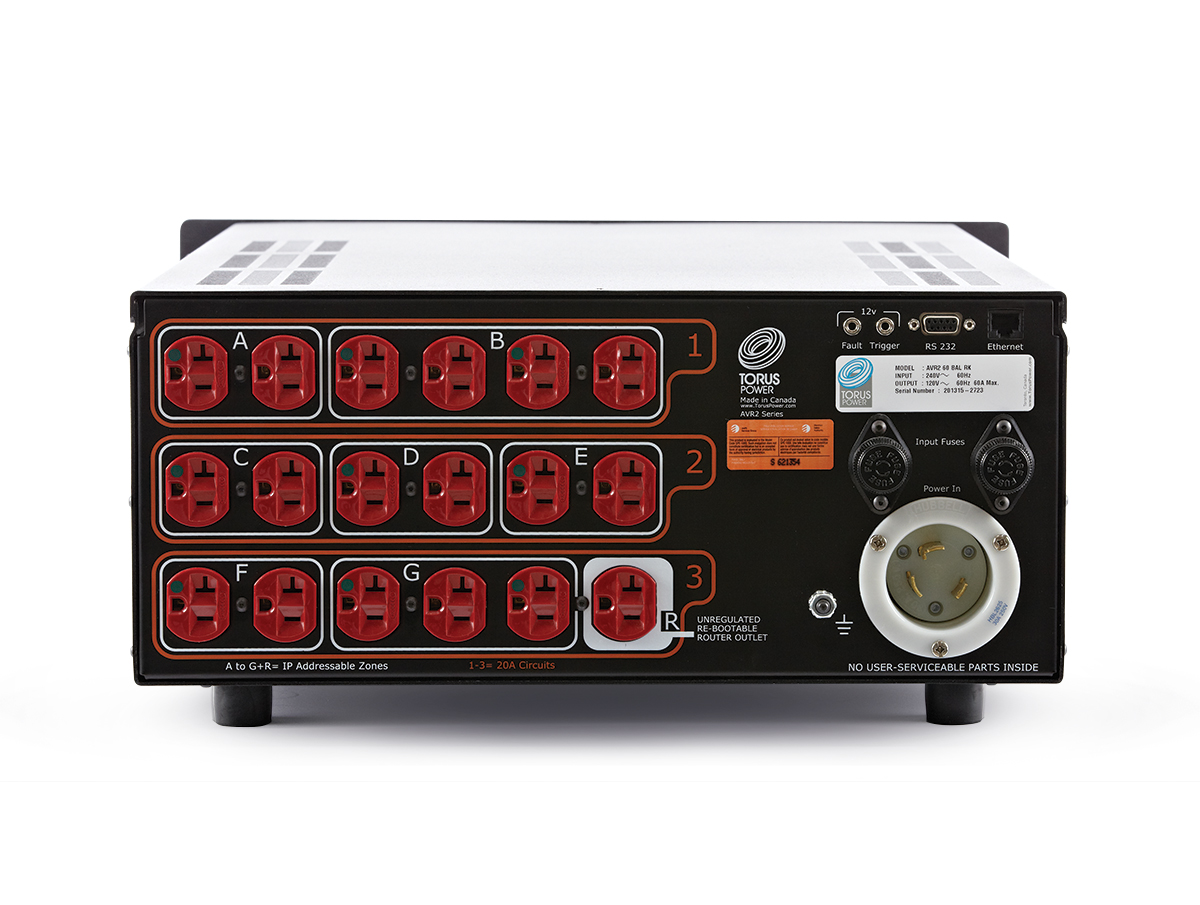

AVR2 60 Back

SPECIFICATIONS

MODEL	AVR2 15 PLUS	AVR2 20
FACEPLATE	19″ RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB)
CHASSIS	4U
INPUT	120 VAC
OUTPUT	120 VAC +/- 5V
INPUT CURRENT LIMITING	1 X 15A Fuse	1 X 20A Fuse
OUTPUT CURRENT	15 A	20A
POWER VA	1,800	2,400
FREQUENCY	60 Hz
NO. OUTLETS	10
INLET	IEC 20A
WEIGHT LB	95
WEIGHT KG	44
SIZE MM W X D X H	483 X 483 X 203
SIZE IN W X D X H	19 X 19 X 8

MODEL	AVR2 20 BAL	AVR2 45 BAL		AVR2 60 BAL			AVR2 75 BAL	AVR2 90 BAL
FACEPLATE	19″ RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB)
CHASSIS	4U	5U
INPUT	240 VAC
OUTPUT	120 VAC +/- 5 V
INPUT FUSE	1 X 10A	2 X 25A		2 X 30 A	2 X 40A			2 X 45A
OUTPUT CURRENT	20A	45A		60A	75A			90A
POWER VA	2,400	5,400		7,200			9,000	10,800
FREQUENCY	60 Hz
NO. OUTLETS	10	18					24
INLET	IEC 20A	TWIST LOCK 30A, 250V				TWIST LOCK 50A, 250V
OUTPUT FUSES		3 X 20 A			5 X 20 A
WEIGHT LB	103	138	164		195			200
WEIGHT KG	47	62.5	74.5		88.5			90.5
SIZE MM W X D X H	483 X 483 X 203	483 X 559 X 249				483 X 660 X 249
SIZE IN W X D X H	19 X 19 X 8	19 X 22 X 9.8				19 X 26 X 9.8

Input Voltage also available at 208V for BAL products feeding from a 3 phase system.
Balanced Input current is drawn at one half the output current capacities.
Balanced Input wiring should be installed by a qualified electrician.
