North American Products

PowerBlock

POWERBLOCK SERIES

Video

Technology

  • Toroidal Isolation
  • Noise Filtering
  • High Instantaneous Current Capability
  • Lightning and Surge Protection

Description

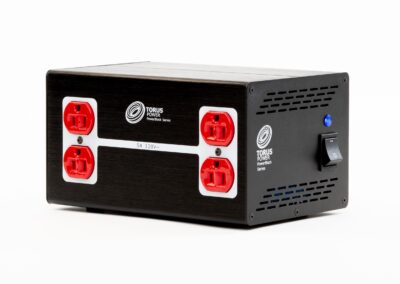

The new Torus PowerBlock series is Toroidal Isolation transformers with compact footprints and rugged construction.

There are 2 models for North America. PB 5 is a lower power version rated at 600VA, which is suitable for compact systems, source components, TVs or projectors, and more. The PB 10 is rated as 2 X 600 VA, and is recommended for mid-power AV systems.

Torus PowerBlock PB 5 and PB 10 are ultra compact and portable Toroidal Isolation Power Transformers, and the most affordable products in the Torus line-up.

The compact footprint and rugged construction of PowerBlock models make them convenient for use in almost any situation. They look sharp on or near a component shelf, on any floor surface or can be located elsewhere when space is at a premium.

Torus PowerBlock PB 5 & PB 10 models come with a replaceable fast acting fuse 5mm x 20mm on the input side of the unit.

Torus PowerBlock models will shutdown if the internal unit temperature reaches excessive levels.

Contact Torus Power for special mounting requirements. PowerBlock models provide basic circuit protection with Transient Voltage Surge Suppression (TVSS).




SPECIFICATIONS

MODEL PB 5 PB 10
INPUT VOLTAGE 120V
OUTPUT VOLTAGE 120V
INPUT PROTECTION 1 X 5A FUSE 1 X 10A FUSE
OUTPUT CURRENT 5A 10A
POWER RATING 600VA 2 X 600VA
FREQUENCY 60 Hz
NO OF OUTLETS 2 Duplex 4 Duplex
INLET TYPE IEC 10A
OUTPUT TYPE NEMA 5-15R
WEIGHT (KG) 10 16
WEIGHT (LB) 22 35
SIZE MM W X D X H 152 X 125 X 232 152 X 125 X 424
SIZE IN W X D X H 6 X 4.9 X 9.2 6 X 4.9 X 16.7
