ALL IN ONE power transformerALL IN ONE SERIES
Technology
- Toroidal Isolation
- Noise Filtering
- High Instantaneous Current Capability
Description
The Torus Power All-in-One (AIO) provides a comprehensive approach to whole system power conditioning.

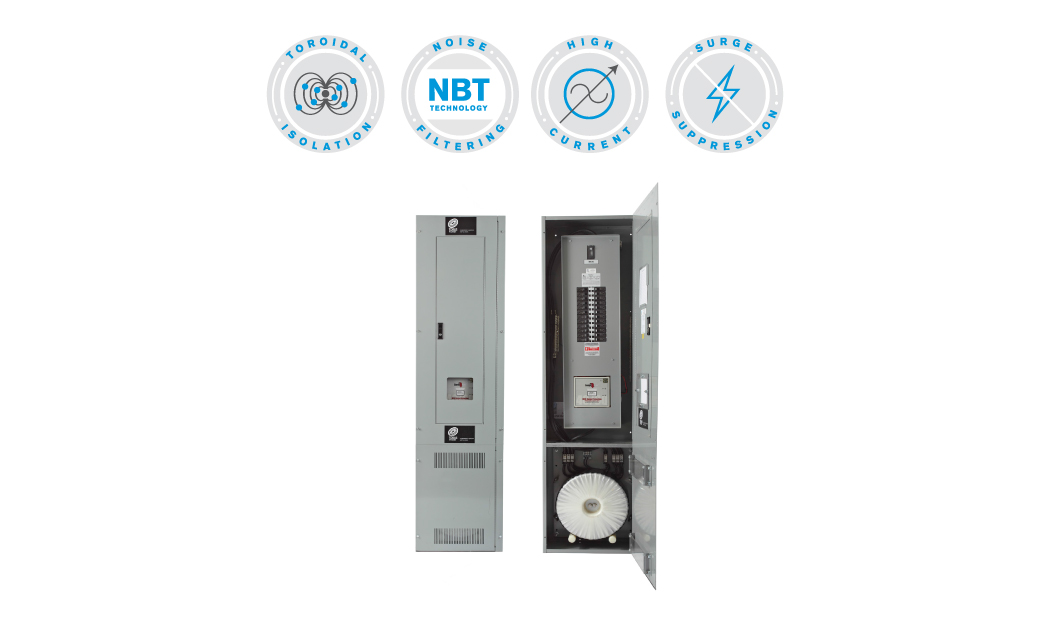

The stand-alone electrical panel has two sections. The top section is pre-wired with 24 industrial grade 20A bolt-in breakers, which are fed by robust 1 ¼” x ¼” all copper buss bars. Advanced surge suppression is provided. Clean, isolated power is supplied to the breakers by a Toroidal Isolation transformer mounted in the lower section of the panel.
The AIO uses a separately derived equipment ground (from the isolated ground) making troubleshooting ground loops much easier, and providing an extremely quiet noise floor. Models are rated up to 100Amps, with 240V or 208V inputs provided.
The AIO was developed for the professional recording studio industry by Arthur Kelm of Ground One in California, and is now widely used in discriminating consumer and professional applications.
SPECIFICATIONS
| MODEL | AIO-7.5K-240 | AIO-7.5K-208 |
| CHASSIS | PANEL BOARD | |
| INPUT VOLTAGE | 240 V | 208 V |
| OUTPUT VOLTAGE | 120V or 240V | |
| OUTPUT CURRENT | 62 A at 120V or 31A at 240V | |
| POWER | 7500 VA | |
| FREQUENCY | 50 / 60 Hz | |
| OUTPUT BREAKERS | 24 X 20A | |
| WEIGHT LBS | 242 | |
| WEIGHT KG | 110 | |
| DIMENSIONS (W X H X D) IN | 20 X 8 X 74 | |
| DIMENSIONS (W X H X D) MM | 508 X 203 X 1880 | |
| TVSS standard for AIO. To be fed from disconnect or panel with current limiting. | ||
| MODEL | AIO-12.5K-240 | AIO-12.5K-208 |
| CHASSIS | PANEL BOARD | |
| INPUT VOLTAGE | 240 V | 208 V |
| OUTPUT VOLTAGE | 120V or 240V | |
| OUTPUT CURRENT | 104 A at 120V or 52A at 240V | |
| POWER | 12,500 VA | |
| FREQUENCY | 50 / 60 Hz | |
| OUTPUT BREAKERS | 24 X 20A | |
| WEIGHT LBS | 282 | |
| WEIGHT KG | 128 | |
| DIMENSIONS (WxHxD) IN | 20 x 8 x 74 | |
| DIMENSIONS (WxHxD) MM | 508 x 203 x 1880 | |
| TVSS standard for AIO. To be fed from disconnect or panel with current limiting. | ||
AVR Elite Series
New! Torus Power AVR ELITE: Featuring Torus Power Connect
Description
All Torus Power AVR ELITE series models are a full-feature state-of-the-art power transformer, isolating and protecting your system. Like all Torus Power products, the AVR ELITE series provides true isolation (using massive toroidal transformers) and protects all connected equipment from the risk of severe power line surges using series-mode surge suppression. Use Torus Power Connect to enable remote power management of the AVR ELITE.
In addition, Torus AVR ELITE provides stable voltage to keep equipment running in the optimal range of 116VAC to 124VAC (120V +/- 4V) for any input voltage from 90V to 130VAC. (International units operate within nominal input voltage such as 220V, 230V, 240V; Torus AVR ELITE keeps them operating within a range of +/- 8 V.)
Torus Power AVR ELITE technology uses a micro-processor to monitor and control the voltage, seamlessly switching the multi-tapped toroidal transformer to ensure the voltage powering your connected equipment remains in the optimal range. In the event of a high or low incoming mains voltage fault condition the unit automatically disconnects power to the connected equipment, adding another level of protection. When the input voltage restores to the proper range, the AVR ELITE will automatically restart normal operation to restore power to your connected equipment.
The Torus Power AVR ELITE includes an attractive front panel LCD display to provide information regarding input and output voltages, output current, power consumption, total harmonic distortion, time and date, as well as displaying fault conditions.
Voltage sags, brownouts and surges can stress components and shorten equipment life. Torus Power AVR deals with these problems effectively, providing stable voltages for your valuable equipment.
AVR ELITE Operation Modes
-
Simplest: Stand-alone. Plug and play. No internet or internet connectivity required.
-
Local Network: Web browser. Set up, monitor and control on mobile devices, tablets, or computers on local network using AVR's built-in web browser interface. Hard-wired network connection required.
-
Cloud Connection: Torus Power Connect. Built-in WiFi allows connection to Torus Power Connect cloud-based website for remote power management.
AVR Elite Front Panel
AVR ELITE rear panel
| MODEL | TOT AVR ELITE 10 | TOT AVR ELITE 10 SMSS |
| FACEPLATE | 19″ RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB) | |
| CHASSIS | 2U | |
| INPUT | 120 VAC, Range from 85 - 135 VAC | |
| OUTPUT | 120 VAC | |
| INPUT FUSE | 10A | |
| OUTPUT CURRENT | 10A | |
| POWER VA | 1200 | |
| FREQUENCY | 60 HZ | |
| NO. OUTLETS | 10 | |
| OUTPUT STYLE | NEMA 5-15R | |
| SURGE SUPPRESSION | TVSS | TVSS & SMSS |
| WEIGHT LB | 46.1 | 47.3 |
| WEIGHT KG | 20.9 | 21.4 |
| SIZE CM W X D X H | 43.2 X 48.9 X 10.2 | |
| SIZE IN W X D X H | 17 x 19.3 X 4 | |
| MODEL | AVR ELITE 15 | AVR ELITE 20 |
| FACEPLATE | 19″ RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB) |
|
| CHASSIS | 2U | 4U |
| INPUT | 120 VAC, Range from 85 - 135 VAC | |
| OUTPUT | 120 VAC | |
| INPUT FUSE | 15 A | 20 A |
| OUTPUT CURRENT | 15 A | 20 A |
| POWER VA | 1800 | 2400 |
| FREQUENCY | 60 HZ | |
| NO. OUTLETS | 10 | |
| OUTPUT STYLE | NEMA 5-15R | NEMA 5-20R |
| SURGE SUPPRESSION | SMSS | |
| WEIGHT LB | 26.5 | 97.9 |
| WEIGHT KG | 58.3 | 44.5 |
| SIZE CM W X D X H | 43.2 x 48.9 x 10.2 | 43.2 X 48.9 X 20.3 |
| SIZE IN W X D X H | 17 X 19.3 X 4 | 17 X 19 X 8 |
| MODEL | AVR2 ELITE 20 |
| FACEPLATE | 19″ RACK MOUNT (RK), 17″SILVER (CS), 17″ BLACK (CB) |
| CHASSIS | 4U |
| INPUT | 120 VAC, Range from 85 - 135 VAC |
| OUTPUT | 120 VAC |
| INPUT FUSE | 20 A |
| OUTPUT CURRENT | 20 A |
| POWER VA | 2400 |
| FREQUENCY | 60 |
| NO. OUTLETS | 9 + R |
| OUTPUT STYLE | NEMA 5-20R |
| SURGE SUPPRESSION | SMSS |
| WEIGHT LB | 45 |
| WEIGHT KG | 99 |
| SIZE CM W X D X H | 43.2 X 48.3 X 20.3 |
| SIZE IN W X D X H | 17 X 19 X 8 |
| MODEL | AVR-2 ELITE 40 BAL | AVR-2 ELITE 60 BAL | AVR-2 ELITE 90 BAL |
| FACEPLATE | 19″ RACK MOUNT (RK), 17″SILVER (CS), 17″ BLACK (CB) | ||
| CHASSIS | 5U | 5U | 5U |
| INPUT | Range from 170 - 270 VAC Balanced | ||
| OUTPUT | 120 VAC | ||
| INPUT FUSE | 2 x 20 A | 2 X 30 A | 2 X 45 A |
| OUTPUT CURRENT | 40 A | 60 A | 90 A |
| POWER VA | 4800 | 7200 | 10800 |
| FREQUENCY | 60 | ||
| NO. OUTLETS | 11 + R | 17 + R | 23 + R |
| OUTPUT STYLE | NEMA 5-20R | NEMA 5-20R | NEMA 5-20R |
| SURGE SUPPRESSION | SMSS | ||
| WEIGHT KG | 62.5 | 84 | 127 |
| WEIGHT LB | 137.8 | 184.8 | 279.4 |
| SIZE CM W X D X H | 43.2 X 55.9 X 24.9 | 43.2 X 66.0 X 24.9 | |
| SIZE IN W X D X H | 17 X 22 X 9.8 | 17 X 26 X 9.8 | |
Full Features
- Torus Power Connect
-
Toroidal Isolation provides ultimate clean power performance
-
Voltage regulated to 120V (+/- 4V). For 220V-240V input models the regulation is +/- 8V.
- Remote power management using Torus Power Connect
-
All features of the AVR Series
-
Powerful 32-bit processor
-
Internal Flash Memory for 10,000 events to record data when offline to Torus Power Connect
-
New separate high reliability power supply module to further isolate the low voltage and high voltage paths
-
Enhanced communication module including WiFi connectivity (used for Torus Power Connect operation and transparent update of firmware)
-
Optical isolation between high voltage and low voltage to increase safety and compliance to new standards
-
New circuit boards designed for high resolution audio performance
-
USB port for 3rd party connectivity, LED lighting, and charging
-
Automatic shutdown of outlet power on low and high input fault conditions
-
Series mode surge suppression protects against lighting, surges, spikes etc.
-
Connect to local network using Web page browser
-
Password control
-
Email notification of fault conditions
-
No programming or internet connection needed
-
Larger LCD display provides power data and fault condition details (configurable to turn off or dim on timed basis)
AVR2 ELITE added/enhanced Features
-
Individually addressable outlet zones for control and monitoring
-
Power-up sequencing with selectable delay time between zones
-
Scheduling features allows automatic control (on/off) of any outlet zone. Schedule remains active when internet connection is lost, if system power maintained
-
Schedule up to 6 events per day per zone
-
Automatic reboot feature allows remote restart of routers and modems if internet connection lost
AVR ELITE Product Block Diagram
