NORTH AMERICAN Torus Power PRODUCTS

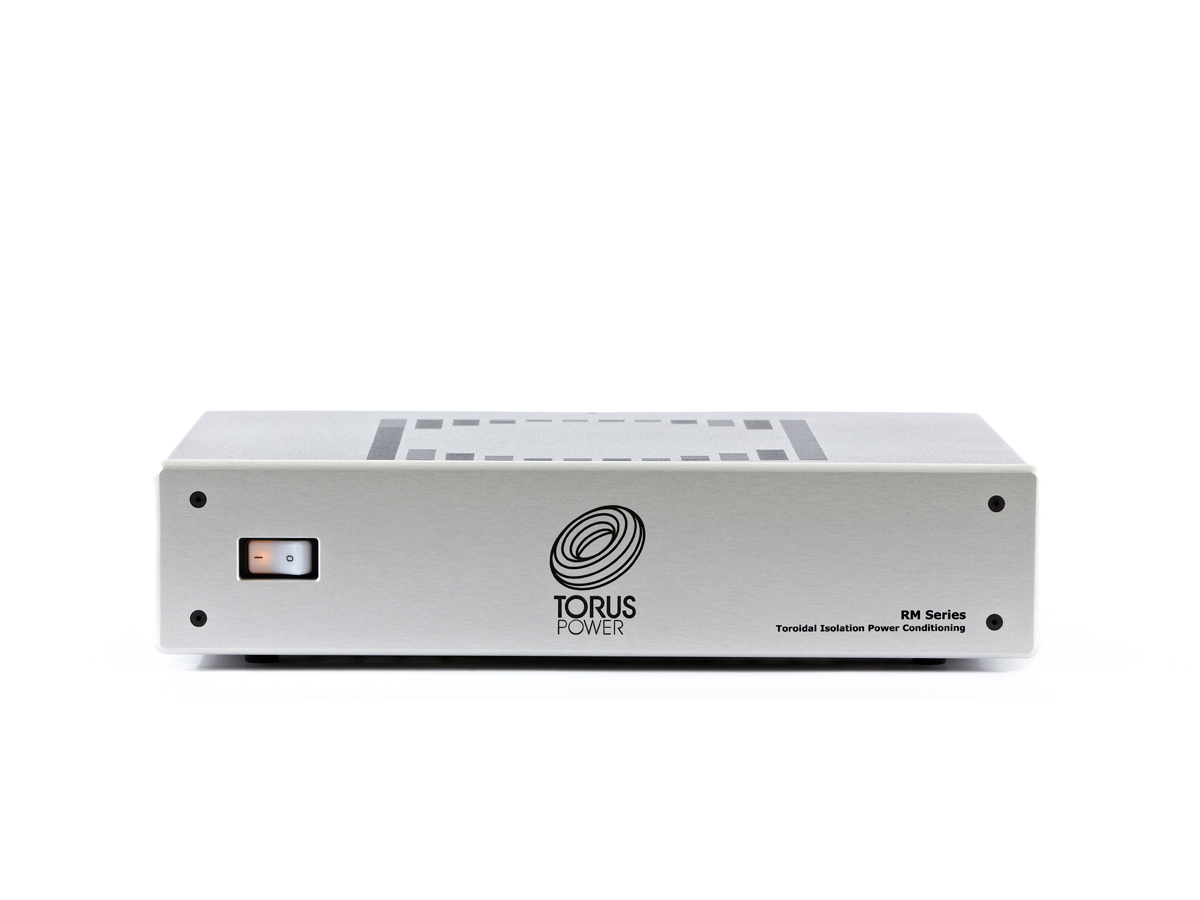

RM SERIES power transformer

RM SERIES

Technology

  • Toroidal Isolation
  • Noise Filtering
  • High Instantaneous Current Capability
  • Lightning and Surge Protection

Description

The original Torus Power models in the RM series remain unparalleled for performance, protection, and value, with models from 5 Amp to 100 Amp.

A popular model in the RM series is the RM 20, which has been consistently top-rated by leading audiophile magazines.

Smaller models (such as RM 10 or RM 15) are ideal for mid-size systems, while the RM5 can be dedicated to front-end components, media servers, etc. Larger custom installation models rated 60 Amp and 100 Amp balanced input provide clean, protected power for the largest custom installed systems.

Many Torus Power models feature Balanced 240V input. This configuration provides additional noise cancellation as the two input phases are 180 degrees out of phase from each other.

Torus Medical Grade Outlets on North American Models

Torus Power RM, AVR, and AVR2 series models use extra heavy duty medical grade outlets custom manufactured by Hubbell. These outlets provide greater contact force, reduced heat buildup, and redundant grounding, and are vastly superior to commercial grade outlets. Torus Power 15 Amp & 20 Amp Outlets are available for purchase.

SPECIFICATIONS

MODEL RM 5 RM 10 RM 15 RM 15 PLUS RM 20
FACEPLATE 19 ” RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB)
CHASSIS 2U 3U
INPUT V 120 VAC
OUTPUT VOLTS 120 VAC
INPUT CURRENT LIMITING ** 1 X 5A (C) 1 X 10A (C) 1 X 15A (C) 1 X 15A (F) 1 X 20A (F)
OUTPUT CURRENT 5A 10A 15A 20A
POWER VA 600 1,200 1,800 2,400
FREQUENCY 60 Hz
NO. OUTLETS 6 8 10
INLET TYPE IEC 15A IEC 20A
WEIGHT LB 29.5 36 46 78 88
WEIGHT KG 13.4 16.4 20.9 35.5 40
SIZE MM WxDxH 483 X 287 X 102 483 X 419 X 159
SIZE IN WxDxH 19 X 11.3 X 4 19 X 16.5 X 6.3

** (F) – Fuse (C) – Circuit Breaker

MODEL RM 20 BAL RM 45 BAL RM 60 BAL RM 75 BAL RM 100 BAL
FACEPLATE 19 ” RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB)
CHASSIS 3U 4U 4U 5U
INPUT V 240 VAC
OUTPUT VOLTS 120 VAC
INPUT FUSE 1 X 10A 2 X 25A 2 X 30A 2 X 40A 2 X 50A
OUTPUT CURRENT 20A 45A 60A 75A 100A
POWER VA 2,400 5,400 7,200 9,000 12,000
FREQUENCY 60 Hz
NO. OUTLETS 10 18 24
INLET TYPE IEC 20A TWIST LOCK 30A, 250V TWIST LOCK 50A, 250V
WEIGHT LB 88 129 155 189 216
WEIGHT KG 40 58.5 70.5 85.5 98
SIZE MM WxDxH 483 X 419 X 159 483 X 483 X 203 483 X 559 X 249
SIZE IN WxDxH 19 X 16.8 X 6.3 19 X 19 X 8 19 X 22 X 9.8

Input Voltage also available at 208V for BAL products feeding from a 3 phase system.

Balanced Power input current is drawn at one half the output current capacities.

Balanced input wiring should be installed by a qualified electrician.
