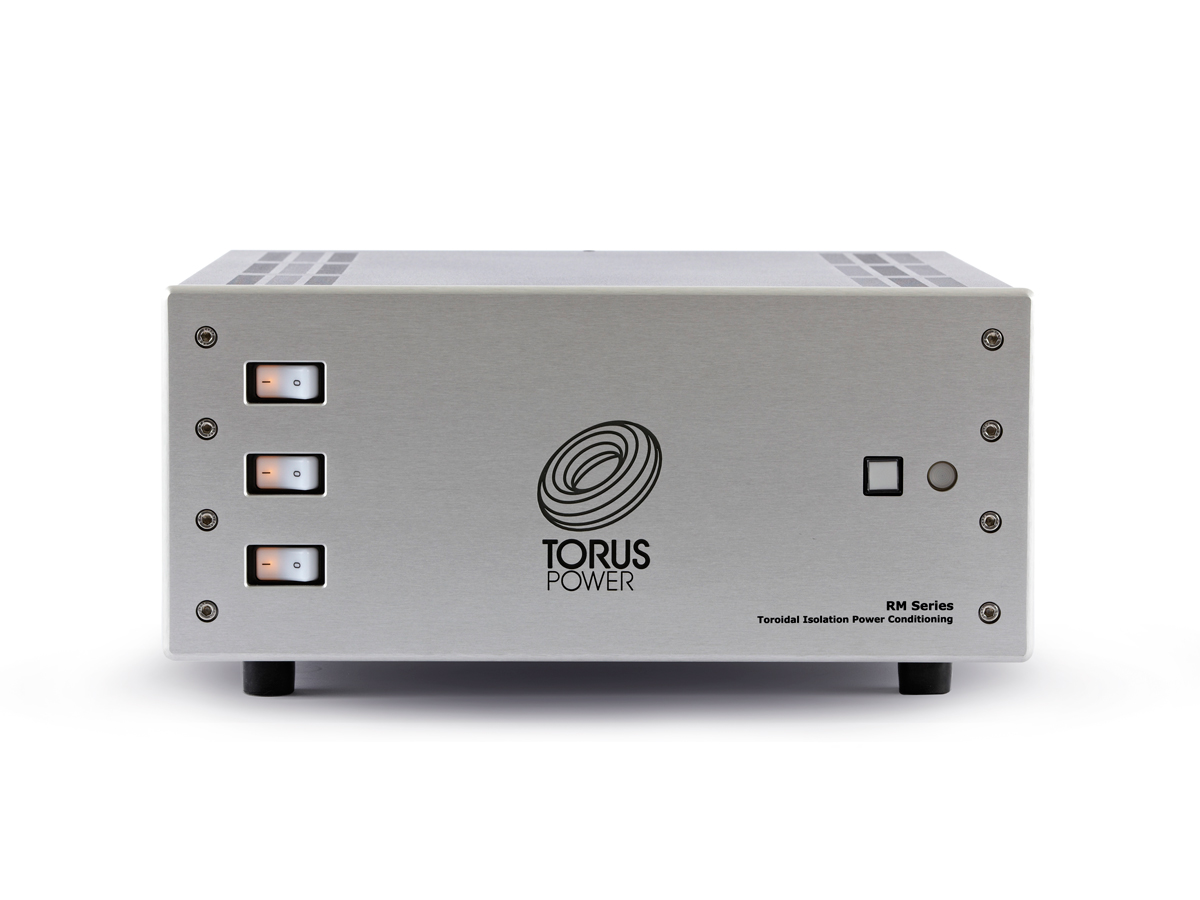

RM Series Power Transformer

RM SERIES

Technology

  • Toroidal Isolation
  • Noise Filtering
  • High Instantaneous Current Capability
  • Lightning and Surge Protection

Description

The original Torus Power models in the RM series remain unparalleled for performance, protection, and value, with models from 4 Amp to 45 Amp.

A popular model in the RM series is the RM 16 AUS. Smaller models RM 8 AUS are ideal for mid-size systems, while the RM 4 AUS and RM 8 AUS can be dedicated to front-end components, media servers, etc.

Larger custom installation models rated 30 Amp and 45 Amp provide clean, protected power for the largest custom installed systems.

SPECIFICATONS

RM 4 AUS RM 8 AUS RM 16 AUS RM 30 AUS RM 45 AUS
FACEPLATE 19 ” RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB)
CHASSIS 2U 3U 4U 4U 5U
INPUT VOLTAGE 220 – 240 VAC
OUTPUT VOLTAGE 220 – 240 VAC
INPUT CURRENT LIMITING * 4A (C) 8A (C) 16A (C) 2 X 30A (F) 2 X 45A (F)
OUTPUT CURRENT 4A 8A 16A 30A 45A
POWER VA 960 1,920 3840 7,200 10,800
FREQUENCY 50 – 60 Hz
NO. OUTLETS 3 5 6 6 8
INLET TYPE 250V IEC 15A IEC 20A TWIST LOCK 30A TWIST LOCK 50A
OUTLET TYPE 250V 10A AUS Socket 20A AUS Socket
WEIGHT LB 38.5 75 119 172 216
WEIGHT KG 17.5 34 54 78 98
SIZE MM
W ** 483 483 483 483 483
D 287 419 483 483 559
H 102 159 203 203 249
SIZE IN
W ** 19 19 19 19 19
D 11.3 16.5 19 19 22
H 4 6.3 8 8 9.8

* (F) – Fuse(s) (C) – Circuit Breaker

** Width is based on RACK MOUNT (RK) Faceplate
