AUSTRALIA Torus Power PRODUCTS

AVR SERIES power transformer

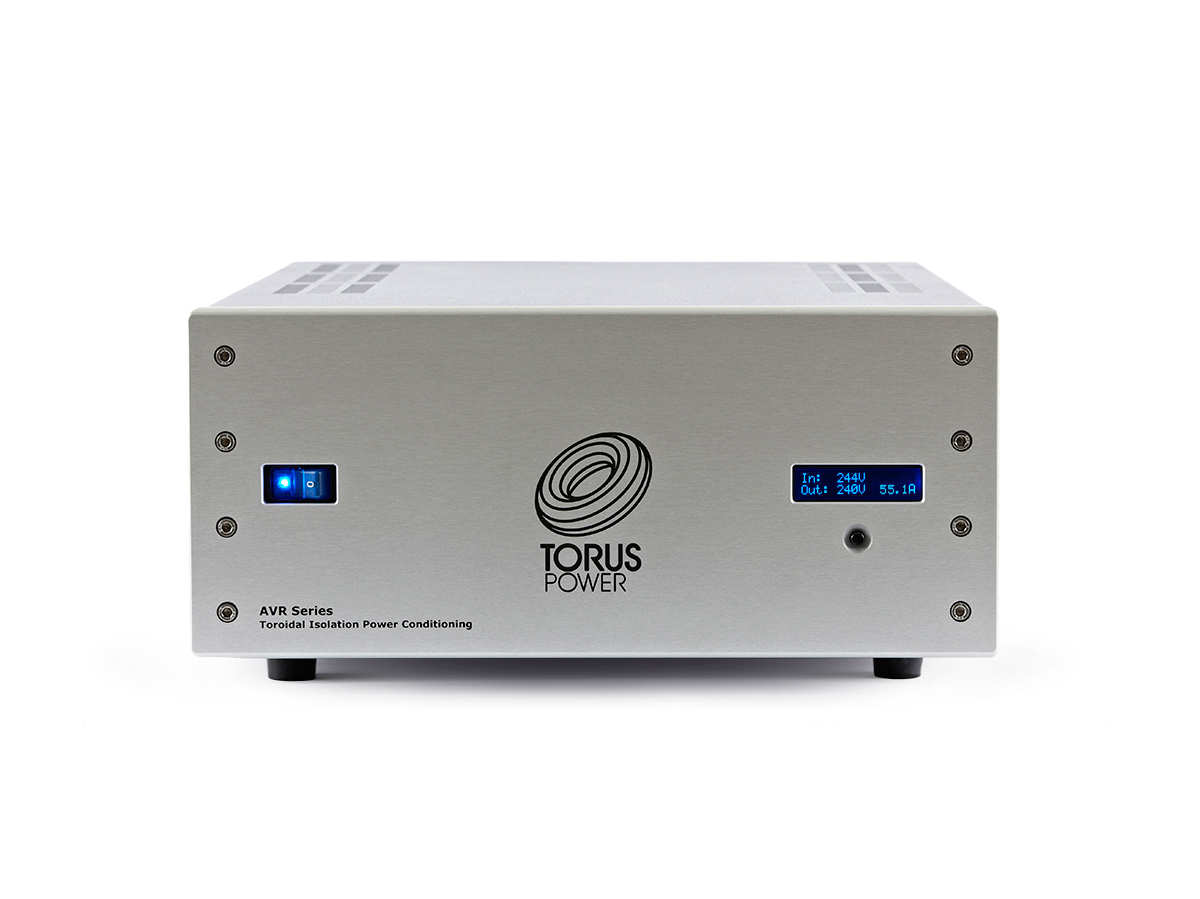

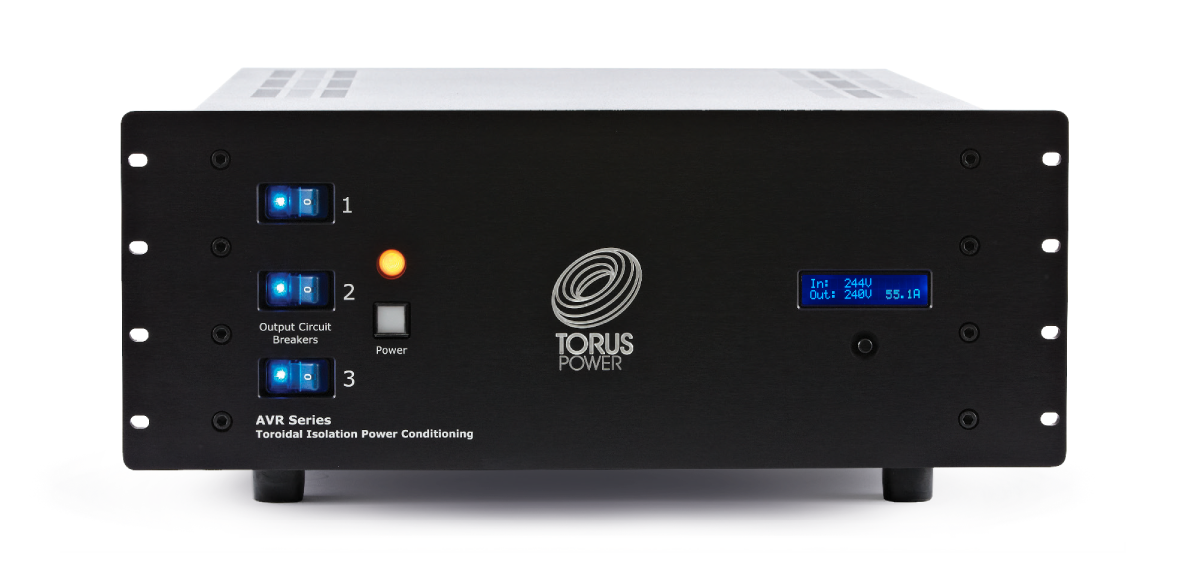

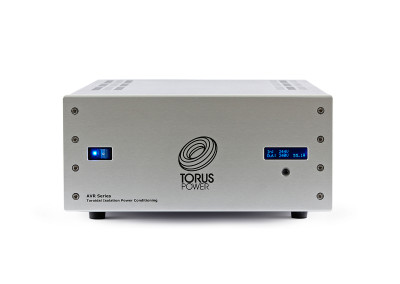

AVR SERIES

Technology

  • Toroidal Isolation
  • Noise Filtering
  • High Instantaneous Current Capability
  • Series Mode Surge Suppression
  • Automatic Voltage Regulation
  • Smart Ethernet

Description

Torus Power AVR provides Automatic Voltage Regulation to the standard Torus Power features, thereby enhancing protection against voltage sags, brownouts and surges.

Ethernet connectivity and RS232 interface makes AVR models ideal for basic home monitoring applications. Voltage regulation keeps the connected equipment within the optimal voltage operating range of ADVISE SPECS regardless of fluctuations in line voltages.



Features

  • Password protection control
  • Automatic email notification on fault condition
  • Series mode surge suppression — protects against lighting strikes
  • Automatic Voltage Regulation — maintain stable voltage conditions
  • RS-232 control — compatible with Crestron and other control systems
  • Switch-On Safety Delay (5 seconds) when power turned on / restored
  • Cloud based monitoring and control through Nuage Nine, ihiji, and other systems in future
  • IP addressable with built-in web browser interface – allows remote monitoring and control
  • Front panel display shows voltage conditions (input / output voltage), current draw, and IP address

SPECIFICATIONS

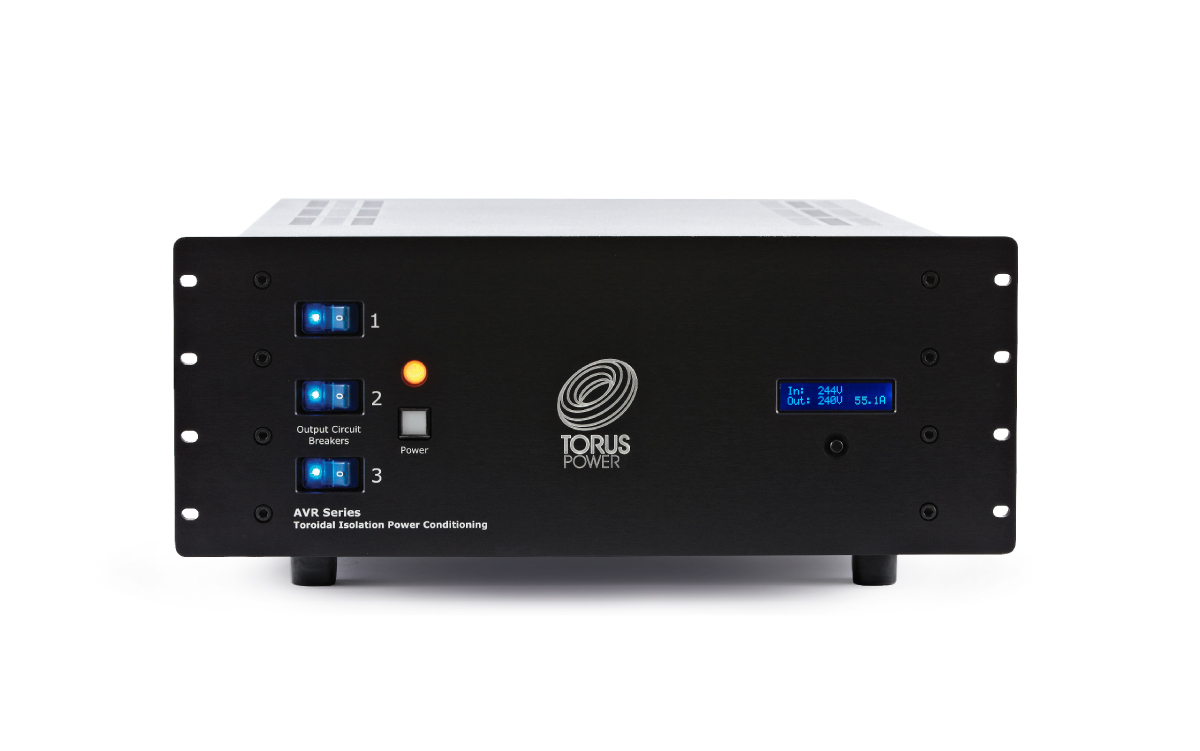

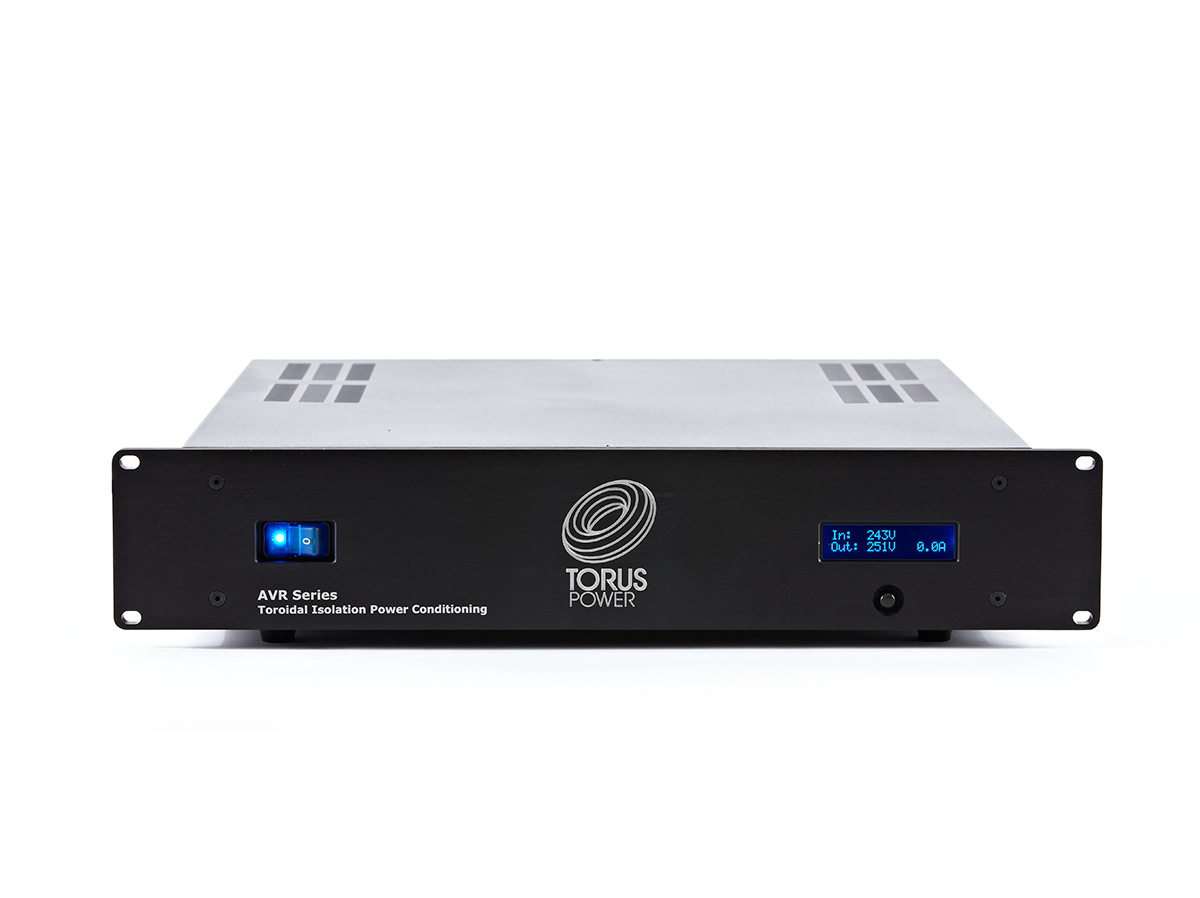

MODEL AVR 4 AUS AVR 8 AUS AVR 16 AUS AVR 30 AUS AVR 45 AUS
FACEPLATE 19″ RACK MOUNT (RK), 17″ SILVER (CS), 17″ BLACK (CB)
CHASSIS 2U 4U 5U
INPUT 240 VAC (Operating Range 170 – 270V)
OUTPUT VOLTAGE 220 – 240 VAC ± 10 V
INPUT CIRCUIT LIMITING * 4A (C) 8A (C) 16A (C) 2 X 30A (F) 2 X 45A (F)
OUTPUT CURRENT 4A 8A 16A 30A 45A
POWER VA 960 1,920 3,840 7,200 10,800
FREQUENCY 50 / 60 Hz
NO. OUTLETS 3 5 7 7 8
INLET 250V IEC 15A Inlet, NEMA C14 IEC 20A Inlet, NEMA C20 Hubbell Twist-lock 30A/250V NEMA L6-30P Hubbell Twist-lock 50A/250V 2PW
OUTLET 10A/250V AUS SOCKET 20A/250V AUS SOCKET
WEIGHT LB 54 77 123 188.5 220
WEIGHT KG 24.5 35.0 56.0 85.5 100
SIZE MM
W ** 483 483 483 483 483
D 483 483 559 559 660
H 102 203 249 249 249
SIZE IN
W ** 19 19 19 19 19
D 19 19 22 22 26
H 4 8 9.8 9.8 9.8

* (F) – Fuse(s) (C) – Circuit Breaker

** Width is based on RACK MOUNT (RK) Faceplate
